Ceremonies

Registration and Authentication process overview

In WebAuthn, authentication workflows are called "ceremonies" - a term that emphasizes the formal, cryptographic nature of these operations. There are two main ceremonies that form the foundation of WebAuthn authentication.

The Two Ceremonies

WebAuthn defines two distinct ceremonies:

1. Attestation Ceremony (Registration)

Also called: Creation Ceremony, Registration Ceremony

Purpose: Associates an authenticator with a user account

When to use:

Creating a new user account with WebAuthn
Adding an additional authenticator to an existing account
Registering a backup security key

2. Assertion Ceremony (Authentication)

Also called: Request Ceremony, Authentication Ceremony, Login Ceremony

Purpose: Authenticates a user using a previously registered authenticator

When to use:

User login
Step-up authentication for sensitive operations
Re-authentication after session timeout

Common Workflow Pattern

Both ceremonies follow a similar two-step pattern:

Step 1: Options Creation

The Relying Party (your server) creates options that:

Define parameters for the operation
Include a cryptographic challenge
Specify requirements and preferences
Are sent to the browser/authenticator

Step 2: Response Verification

The authenticator:

Prompts the user for interaction
Performs cryptographic operations
Returns a signed response
The server validates the response

User interaction varies based on authenticator capabilities and your configuration. It can range from a simple button touch to biometric authentication (fingerprint, facial recognition, PIN code).

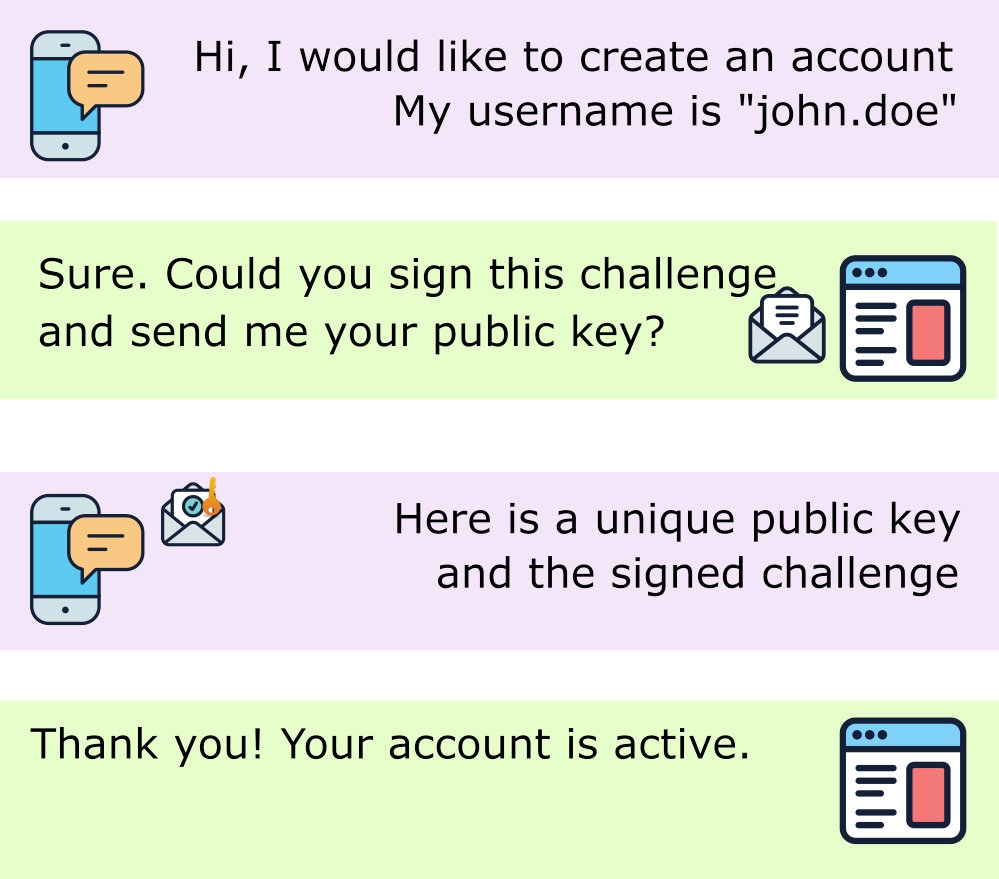

Attestation Ceremony (Registration)

The attestation ceremony registers a new authenticator credential for a user.

Attestation Flow Breakdown

Server Side (Step 1)

// 1. Create PublicKeyCredentialCreationOptions
$publicKeyCredentialCreationOptions = PublicKeyCredentialCreationOptions::create(
    rp: $rpEntity,                    // Your application identity
    user: $userEntity,                // User being registered
    challenge: random_bytes(32),      // Cryptographic challenge
    pubKeyCredParams: $pubKeyCredParams,  // Allowed algorithms
    authenticatorSelection: $authenticatorSelection  // Device requirements
);

// 2. Store challenge in session (for later verification)
$session->set('webauthn_creation_challenge', $publicKeyCredentialCreationOptions->challenge);

// 3. Send options to browser as JSON
return new JsonResponse($publicKeyCredentialCreationOptions);

Client Side (Browser)

// 1. Receive options from server
const options = await fetch('/webauthn/register/options').then(r => r.json());

// 2. Call WebAuthn API
const credential = await navigator.credentials.create({
    publicKey: options
});

// 3. Send credential back to server
await fetch('/webauthn/register', {
    method: 'POST',
    body: JSON.stringify(credential)
});

Server Side (Step 2)

// 1. Load the attestation response
$publicKeyCredential = $serializer->deserialize(
    $request->getContent(),
    PublicKeyCredential::class,
    'json'
);

// 2. Verify the response
$credentialSource = $attestationValidator->check(
    $publicKeyCredential->response,
    $publicKeyCredentialCreationOptions,
    $request->getHost()
);

// 3. Save the new credential
$credentialRepository->saveCredentialSource($credentialSource);

What Happens During Attestation?

Challenge Generation: Server creates a random challenge to prevent replay attacks
User Prompt: Browser asks user to interact with authenticator
Key Generation: Authenticator generates a new public/private key pair
Attestation: Authenticator signs the public key and client data
Verification: Server verifies signatures and stores the public key
Storage: Credential is saved and associated with the user account

Attestation Data Contains

Public Key: Used to verify future signatures
Credential ID: Unique identifier for this credential
AAGUID: Authenticator model identifier
Signature Counter: Used to detect cloned authenticators
Attestation Statement: Optional proof of authenticator authenticity

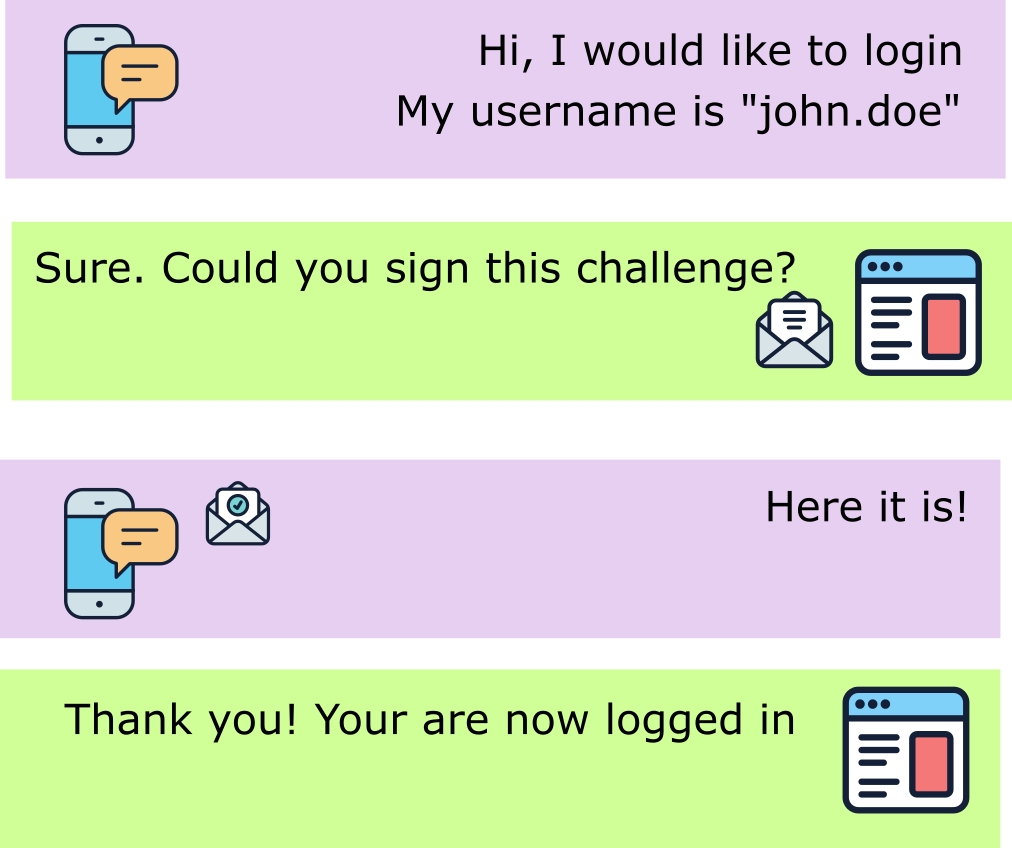

Assertion Ceremony (Authentication)

The assertion ceremony authenticates a user with a previously registered credential.

Assertion Flow Breakdown

Server Side (Step 1)

// 1. Get user's registered credentials
$credentials = $credentialRepository->findAllForUserEntity($userEntity);
$allowedCredentials = array_map(
    fn($c) => $c->getPublicKeyCredentialDescriptor(),
    $credentials
);

// 2. Create PublicKeyCredentialRequestOptions
$publicKeyCredentialRequestOptions = PublicKeyCredentialRequestOptions::create(
    challenge: random_bytes(32),           // New challenge
    allowCredentials: $allowedCredentials, // User's credentials
    userVerification: 'preferred'          // UV requirement
);

// 3. Store challenge in session
$session->set('webauthn_request_challenge', $publicKeyCredentialRequestOptions->challenge);

// 4. Send options to browser
return new JsonResponse($publicKeyCredentialRequestOptions);

Client Side (Browser)

// 1. Receive options from server
const options = await fetch('/webauthn/login/options').then(r => r.json());

// 2. Call WebAuthn API
const credential = await navigator.credentials.get({
    publicKey: options
});

// 3. Send assertion back to server
await fetch('/webauthn/login', {
    method: 'POST',
    body: JSON.stringify(credential)
});

Server Side (Step 2)

// 1. Load the assertion response
$publicKeyCredential = $serializer->deserialize(
    $request->getContent(),
    PublicKeyCredential::class,
    'json'
);

// 2. Find the credential
$credentialSource = $credentialRepository->findOneByCredentialId(
    $publicKeyCredential->rawId
);

// 3. Verify the assertion
$updatedCredential = $assertionValidator->check(
    $credentialSource,
    $publicKeyCredential->response,
    $publicKeyCredentialRequestOptions,
    $request->getHost(),
    $userEntity->id
);

// 4. Update credential (counter may have changed)
$credentialRepository->saveCredentialSource($updatedCredential);

// 5. Log the user in
$session->set('user_id', $userEntity->id);

What Happens During Assertion?

Challenge Generation: Server creates a new random challenge
Credential Selection: Browser identifies available credentials
User Prompt: User interacts with authenticator (touch, PIN, biometric)
Signature: Authenticator signs the challenge with the private key
Verification: Server verifies signature using stored public key
Counter Check: Server verifies counter to detect cloning
Authentication: If valid, user is logged in

Assertion Data Contains

Authenticator Data: Flags, counter, extensions
Client Data: Origin, challenge, type
Signature: Cryptographic proof using the private key
User Handle: Optional user identifier (for usernameless authentication)

Key Differences Between Ceremonies

Aspect

Attestation (Registration)

Assertion (Authentication)

Purpose

Create new credential

Verify existing credential

JavaScript API

navigator.credentials.create()

navigator.credentials.get()

Server Action

Store new public key

Verify signature

Key Operation

Generate key pair

Sign with private key

Options Class

PublicKeyCredentialCreationOptions

PublicKeyCredentialRequestOptions

Validator Class

AuthenticatorAttestationResponseValidator

AuthenticatorAssertionResponseValidator

User Experience

"Register security key"

"Use security key to sign in"

Security Considerations

Challenge Uniqueness

Both ceremonies require a unique, random challenge:

// Always generate a fresh challenge
$challenge = random_bytes(32);  // 32 bytes = 256 bits of entropy

// NEVER reuse challenges
// NEVER use predictable challenges (like timestamps)
// NEVER skip challenge verification

Challenge Storage

Store challenges temporarily in server-side sessions:

// Store during Step 1 (options creation)
$session->set('webauthn_challenge', base64_encode($challenge));
$session->set('webauthn_challenge_expires', time() + 60); // 60 second timeout

// Verify and delete during Step 2 (response validation)
$storedChallenge = base64_decode($session->get('webauthn_challenge'));
$session->remove('webauthn_challenge');

if (time() > $session->get('webauthn_challenge_expires')) {
    throw new \Exception('Challenge expired');
}

Origin Validation

Always verify the origin matches your domain:

// Server must verify origin during validation
$credentialSource = $attestationValidator->check(
    $publicKeyCredential->response,
    $publicKeyCredentialCreationOptions,
    'https://example.com'  // Must match your actual domain
);

Common Pitfalls

❌ Challenge Reuse

// WRONG: Reusing the same challenge
$challenge = 'my-static-challenge';  // Never do this!

❌ Skipping Verification

// WRONG: Trusting client data without validation
$credentialId = $_POST['credentialId'];
$user = $userRepository->find($credentialId); // DON'T!

❌ Incorrect Origin

// WRONG: Verifying with wrong domain
$attestationValidator->check($response, $options, 'http://localhost');
// But the actual domain is https://example.com

Best Practices

✅ Use Timeouts

Set reasonable timeouts for user interaction:

$publicKeyCredentialCreationOptions = PublicKeyCredentialCreationOptions::create(
    rp: $rpEntity,
    user: $userEntity,
    challenge: random_bytes(32),
    timeout: 60000  // 60 seconds in milliseconds
);

✅ Handle Errors Gracefully

Provide helpful error messages:

try {
    $credentialSource = $attestationValidator->check(/* ... */);
} catch (\Webauthn\Exception\InvalidDataException $e) {
    return new JsonResponse([
        'success' => false,
        'error' => 'Invalid authenticator response. Please try again.'
    ], 400);
}

✅ Store Credential Metadata

Keep track of when and how credentials were registered:

$credential->createdAt = new \DateTimeImmutable();
$credential->lastUsedAt = null;
$credential->name = 'My YubiKey';  // Allow users to name their keys
$credential->transports = ['usb', 'nfc'];  // Store transport hints
